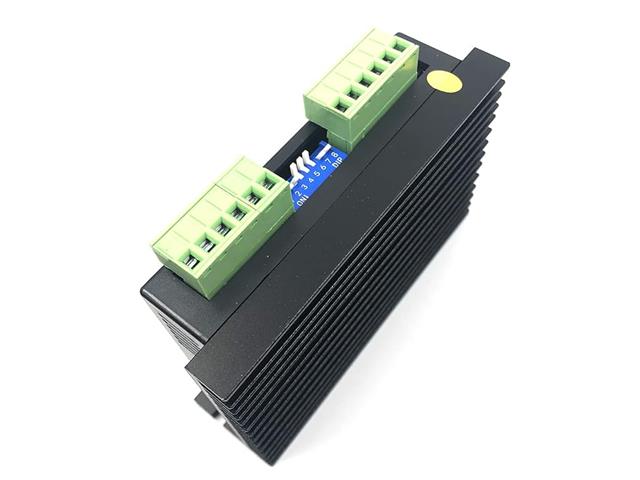

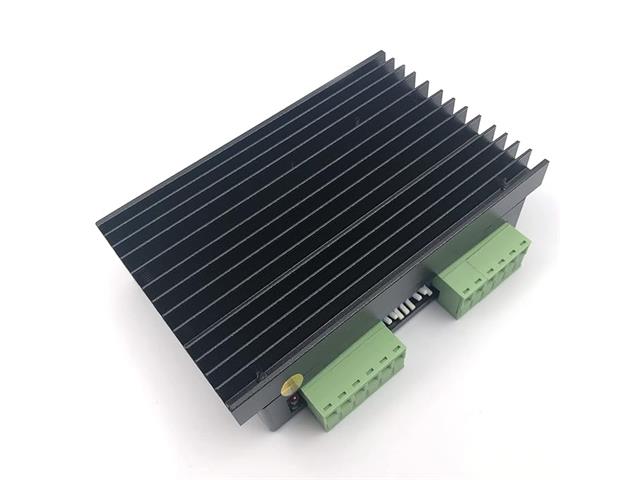

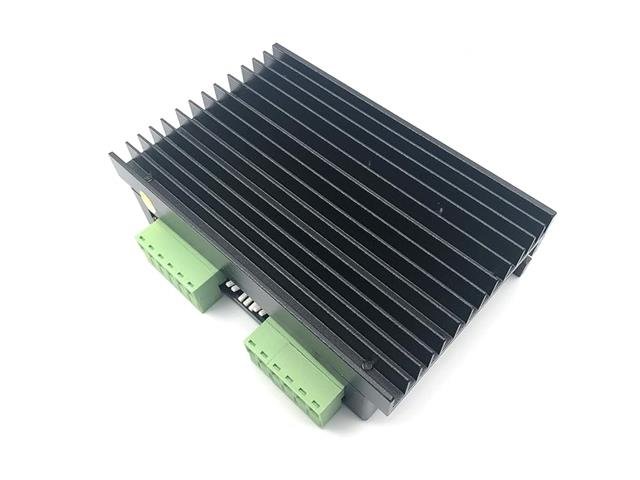

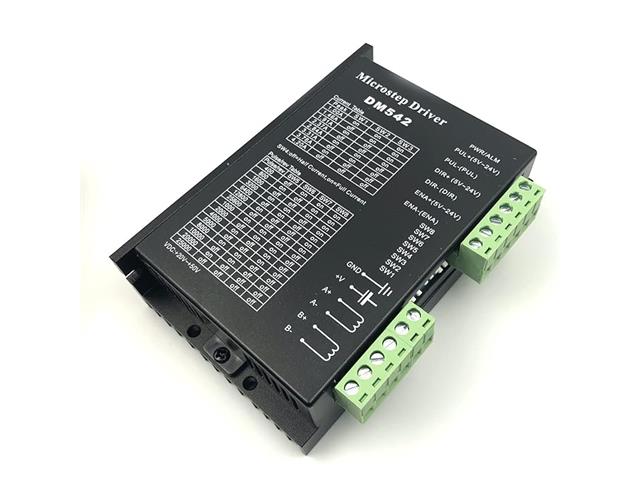

HKD STEPPER MOTOR DRIVER M542
2 and 4 Phase Stepper Motor Driver 4.2A 20-50VDC

Name: HKD STEPPER MOTOR DRIVER M542 - Communica [Part No: HKD STEPPER MOTOR DRIVER M542]
Brand: Communica
SKU: HKD STEPPER MOTOR DRIVER M542
Price: 326.09 ZAR
Availability: OutOfStock

SKU: HKD STEPPER MOTOR DRIVER M542

BRAND: Communica

Sold Out
R 375.00_{(inc VAT)}
R 326.09_{(ex VAT)}

Or split into 4x interest-free
payments of R81.52 Learn more

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Stepper Motor Driver

2 and 4 Phase Stepper Motor Driver

Overview

The M542 V2.0 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving2-phase and 4-phase hybrid stepping motors.

Features

High performance : Cost-effective
Supply Voltage up to : +50 VDC
Output Current up to 4.2A
Self-Adjustment Technology
Pure-Sinusoidal Current Control Technology
Pulse Input Frequency up to 300 KHz
TTL Compatible and Optically Isolated Input
Automatic Idle-Current Reduction
15 Selectable Resolutions in Decimal and Binary, up to 25,600 steps/rev
Suitable for 2-Phase and 4-Phase Motors
Support PUL/DIR and CW/CCW modes
Short-Voltage, Over-Voltage, Over-Current Protections

Applications

Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.

Specifications

Power supply: DC 24-60 (V)
Current maximum: 4.5A
Output phase current: 1.5A-4.5A
Logic input current: 10-20mA
Operating temperature: -15°—+45°
Size: 11.7 x 8.5 cm (about 4.61 x 3.35 inch)

Additional Information

Device	Motor Driver
Type	2 and 4 Phase \| Stepper
