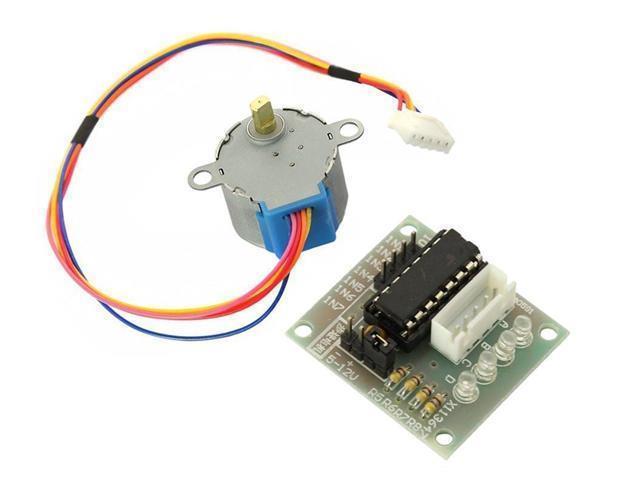

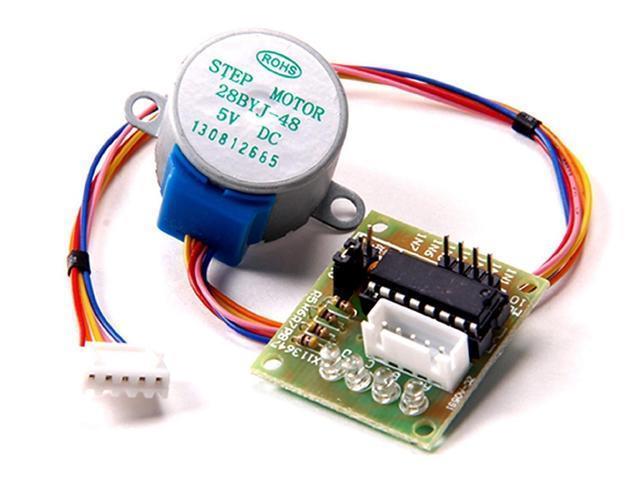

Stepper motor with a standard interface, when used directly pluggable.

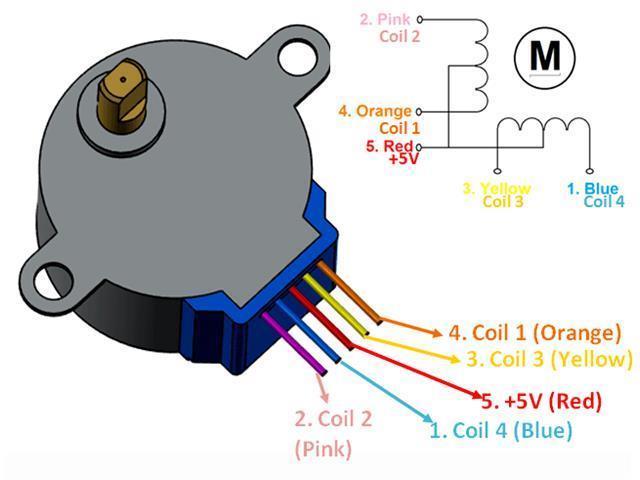

5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase, support the development board，With convenient use, direct docking.

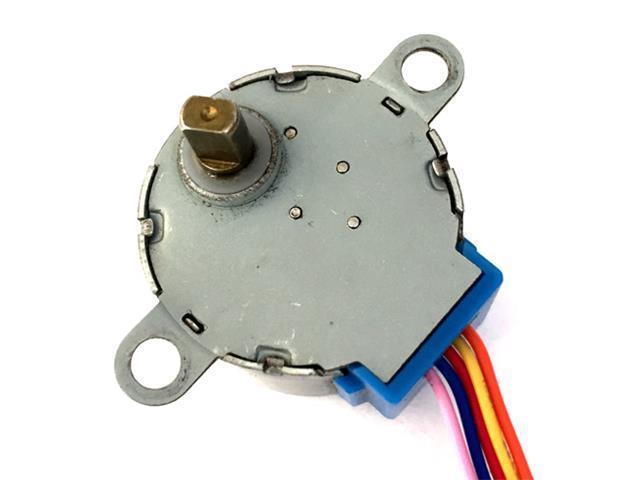

- Deceleration Stepper Motor:

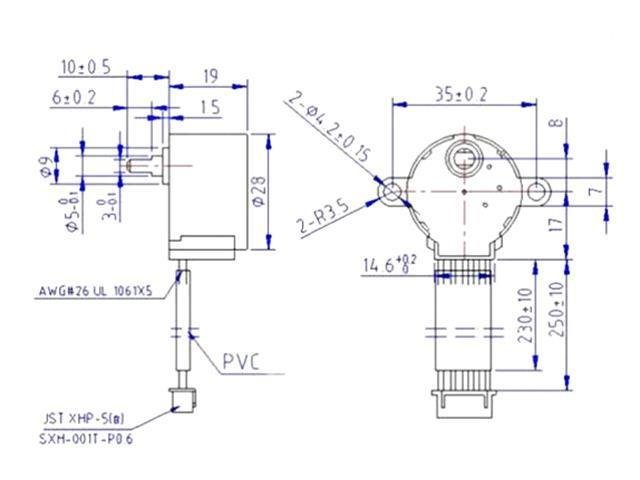

- Diameter : 28mm
- Voltage : 5V.
- Step Torque Angle : 5.625/64.
- Reduction Ratio : 1/64.
- DC Resistance : 200±7% (25)
- Insulation Resistance : >10M (500V)
- Dielectric Strength : 600V AC / 1mA / 1s
- Insulation Grade : A
- No-load Pull in Frequency : >600Hz
- No-load Pull out Frequency : >1000Hz
- Pull in Torque : >34.3mN.m(120Hz)
- Detent Torque : >34.3mN.m
- Temperature Rise : <40K(120Hz)
- Noise : <40dB (120Hz, No load, 10cm)
- Board Size : Approx. 29 x 21 mm
