BDD PWM DC MOTOR CONTR 30A 6-60V
DC6-60V 12V 24V 36V 48V 30A PWM DC Motor Speed Controller

Name: BDD PWM DC MOTOR CONTR 30A 6-60V - Communica [Part No: BDD PWM DC MOTOR CONTR 30A 6-60V]
Brand: Communica
SKU: BDD PWM DC MOTOR CONTR 30A 6-60V
Price: 147.83 ZAR
Availability: OutOfStock

SKU: BDD PWM DC MOTOR CONTR 30A 6-60V

BRAND: Communica

Sold Out
R 170.00_{(inc VAT)}
R 147.83_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: DC Motor Speed Controller, Iot

48V 30A PWM DC Motor Speed Controller

Overview

Digital Display DC 6-60V 30A PWM Motor Speed Controller Soft Start Slow Stop Motor Speed Regulator Governor Control Switch

Features

Soft start time setting: 000-100, slow start to 100% speed time is adjustable between 0-10 seconds, the default is 1 second.
Soft stop time setting: 000-100, slow stop time is adjustable between 0-10 seconds, the default is 1 second.
Rotation speed lower limit setting: 000-080, the minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0.
Speed limit setting: 000-100, the maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%.
Acceleration and deceleration value setting: 001 002 005 010 015 020 025 Each time you press the plus and minus key, the speed changes accordingly by 1%, 2%, 5%, 10%, 15%, 20%, 25%

Specifications

Input voltage: DC 6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed regulation type: flow regulation
Speed control mode: Jog +-
Speed adjustment range: 0-100%
Control frequency: 21kHz

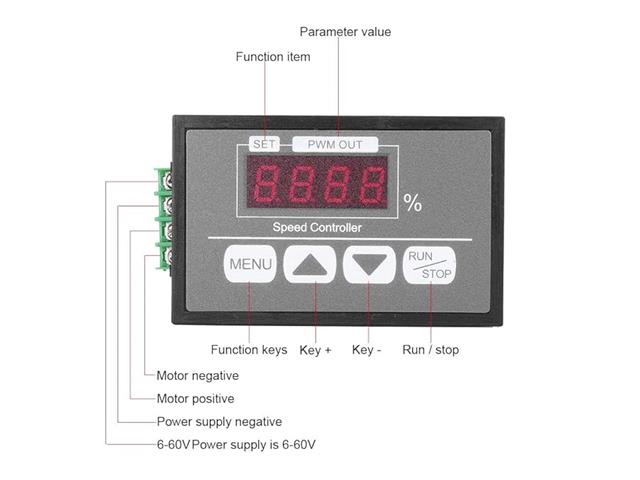

Wiring type: barrier terminal block
Supported motor: brush motor

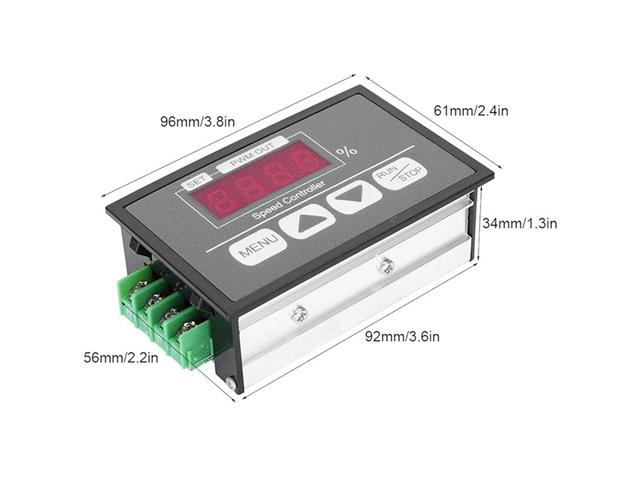

Module size: 96*61*34mm/3.78*2.40*1.34"
Panel opening: 92*56mm/3.62*2.20"
Speed digital display: 0-100%

Downloads

Datasheet - BDD PWM DC MOTOR CONTR 30A 6-60V

Additional Information

Device	Speed Controller
Type	48V \| 30A \| PWM \| DC
