VICT BLUESOLAR PWML 12-24 10A - Solar -

VICT BLUESOLAR PWML 12-24 10A

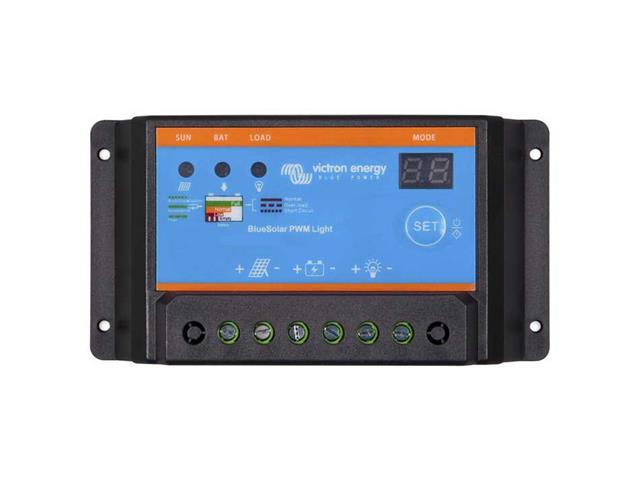

Victron Bluesolar PWM Light Solar Charge Controller 12/24V 10A

SKU: VICT BLUESOLAR PWML 12-24 10A

BRAND: Victron


In Stock
R 350.00 (inc VAT)
R 304.35 (ex VAT)

Collections: Loadshedding, Power

Type: Solar

Category: Loadshedding, Solar Panel Controllers

PWM Light Solar Charge Controller

  • Load output with low battery voltage disconnect function.
  • Lighting control function, one timer only.
  • Two digit seven segment display for quick and easy setting of the load output functionality, including
    timer setting.
  • Three stage battery charging (bulk, absorption, float), not programmable.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.
  • BlueSolar PWM-Light : 12/24-10
  • Battery Voltage : 12/24 V with automatic system voltage detection
  • Automatic load disconnect  : Yes
  • Maximum solar voltage 28V / 55V (1)
  • Self-consumption : < 10 mA
  • Load output : Manual control + low voltage disconnect
  • Protection : Battery reverse polarity (fuse), Output short circuit, Over temperature
  • Overload protection
    • Shut down after 60 s in case of 130% load
    • Shut down after 5 s in case of 160% load
    • Short circuit: immediate shut down
  • Grounding  : Common positive
  • Operating temp. range  : -20 to +50°C (full load)
  • Humidity (non-condensing) : Max 95%

BATTERY

  • Charge voltage 'absorption' : 14.2V / 28,4V
  • Charge voltage 'float' : 13.8V / 27,6V
  • Low voltage load disconnect : 11,2V / 22,4V
  • Low voltage load reconnect
    • 12,6V / 25,2V (manual)
    • 13,1V / 26,2V (automatic)

ENCLOSURE

  • Protection class : IP20
  • Terminal size : 5 mm² / AWG10
  • Weight : 0,15kg
  • Dimensions (h x w x d) : 70 x 133 x 33,5 mm (2.8 x 5.3 x 1.3 inch)
Device Charge Controller
Type PWM | Light Solar
