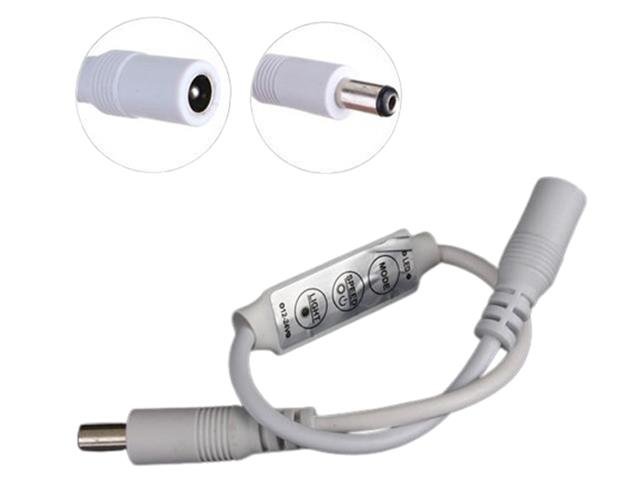

These inline dimmer switches offer a low-profile way to control LED strip lights. Choose from 8 levels of brightness, turn lights on or off, or choose a dynamic mode for added effect. Installation is simple, just connect it between the driver and the strip. Use this with strip lighting that uses a barrel connector, such as single color ABI LED strip light kits.
Instructions:

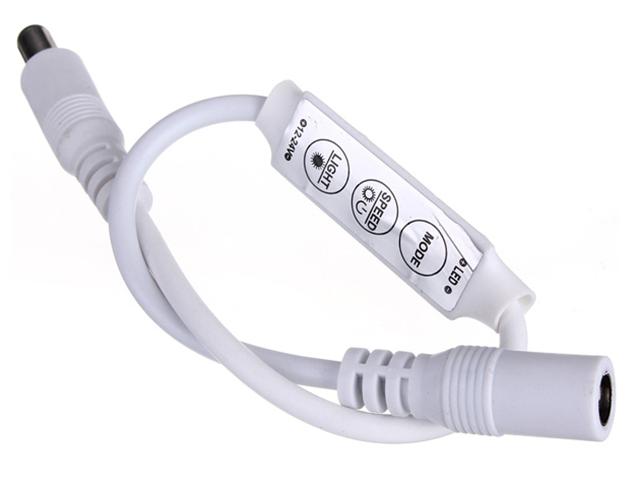

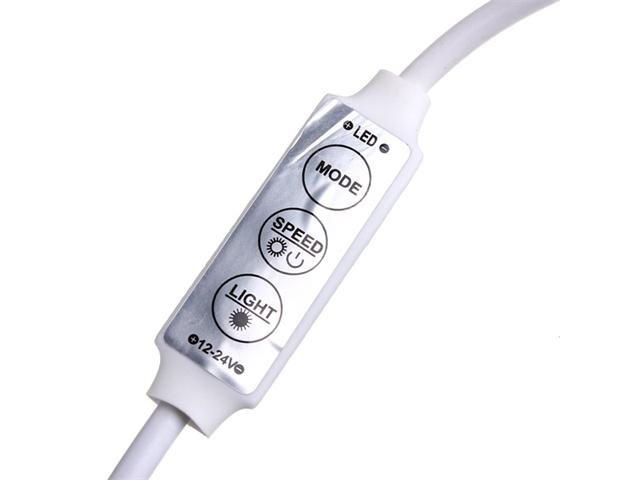

- To turn it on quickly press the middle button.
- To turn it off press and hold the middle button.
- To enable standard dimmer mode, press the lower button once, then you can press the middle button to increase brightness or press the lower button to lower brightness.
- To enable one of the dynamic modes press the top button.
- There are five dynamic modes
- Switch between them by pressing the top button
- The speed of the dynamic modes can be adjusted by pressing the middle button
- To exit dynamic mode, click the lower button once which switches it back to standard dimmer mode.
- Color: Black
- Voltage: 12V - 24V

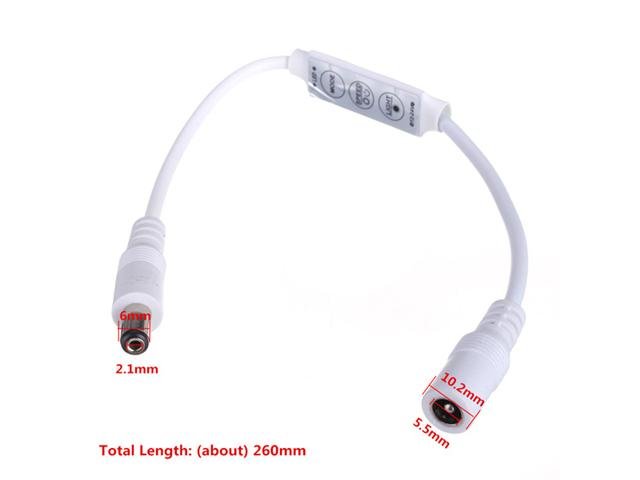

- Dimensions: 260mm
- Max Load: 12A (144W)
- Retains setting after power loss
- Dynamic modes: gradual change, signal light, strobe, breathe, candlelight
| Device |
Dimmer Controller |
| Type |
Mini | 3 Key | 12VDC |
| Highlights |
for Single Colour LED Strips |
