CQY80N

Name: CQY80N - Communica [Part No: CQY80N]
Brand: Vishay
SKU: CQY80N
Price: 11.88 ZAR
Availability: InStock

SKU: CQY80N

BRAND: Vishay

In Stock
R 13.66_{(inc VAT)}
R 11.88_{(ex VAT)}

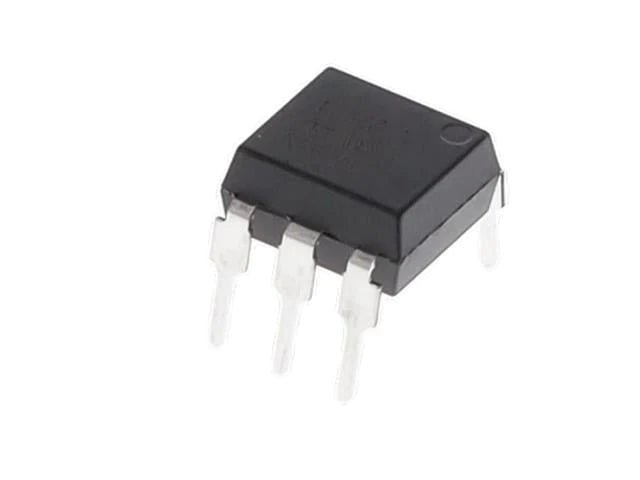

Optocoupler DC-IN 1-CH Transistor with Base DC-OUT 6PDIP

Optocoupler DC-IN 1-CH Transistor

Isolation materials according to UL94-VO
Pollution degree 2 (DIN/VDE 0110/resp. IEC 60664)
Special construction: therefore, extra low coupling capacity of typical 0.3 pF, high common mode rejection
Low temperature coefficient of CTR
Climatic classification 55/100/21 (IEC 60068 part 1)
Rated impulse voltage (transient overvoltage) VIOTM = 6 kV peak
Isolation test voltage (partial discharge test voltage) Vpd = 1.6 kV
Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS
Rated recurring peak voltage (repetitive) VIORM = 600 VRMS (848 V peak)
Creepage current resistance according to VDE 0303/ IEC 60112 comparative tracking index: CTI = 275
Thickness through insulation ≥ 0.75 mm
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Device	Transstor
Type	Optocoupler \| DC-IN \| 1-CH
