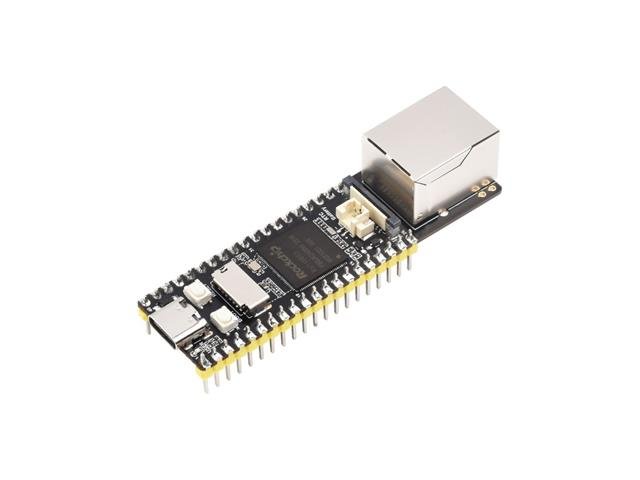

WVS LUCKFOX PICO MAX LINUX BORD
Luckfox Pico Max RV1106 Linux Micro Development Board, Integrates ARM CORTEX-A7/RISC-V MCU/NPU/ISP Processors. Adopts RV1106G3, Onboard 256MB Memory

Name: WVS LUCKFOX PICO MAX LINUX BORD - Communica [Part No: WVS LUCKFOX PICO MAX LINUX BORD]
Brand: Waveshare
SKU: WVS LUCKFOX PICO MAX LINUX BORD
Price: 373.91 ZAR
Availability: InStock

SKU: WVS LUCKFOX PICO MAX LINUX BORD

BRAND: Waveshare

In Stock
R 430.00_{(inc VAT)}
R 373.91_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Development / Microcontroller Boards

Category: Iot, New, Pico Linux Micro Development Board

Pico Max RV1106 Linux Micro Development Board

Features

ingle-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G2 is 0.5 TOPS, and RV1106G3 is 1.0 TOPS
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Specifications

Processor	Cortex A7@1.2GHz
NPU	Pro: 0.5TOPS, supports int4, int8 and int16 Max: 1TOPS, supports int4, int8 and int16
ISP	Input 5M @30fps (Max)
Memory	Pro: 128MB DDR3L Max: 256MB DDR3L
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	26 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (256MB)

Additional Information

Device	Development Board
Type	Pico Max \| RV1106 \| Linux \| Micro
