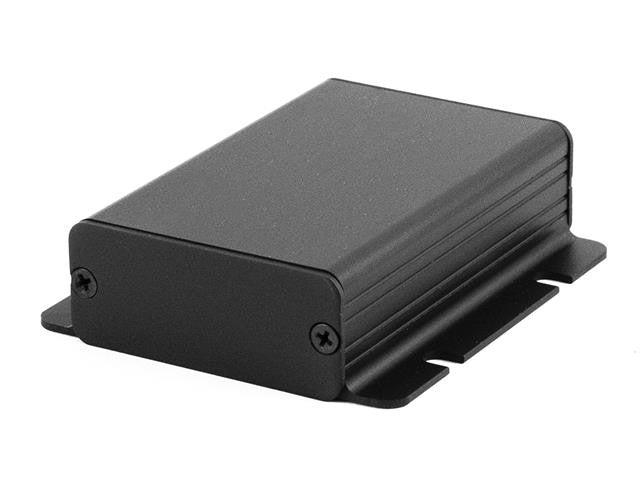

1455CF801BK
Extruded Aluminium Enclosure with Integrated Flange Black Anodized 80x54x23mm - Aluminium End Plates

SKU: 1455CF801BK

BRAND: Hammond


Or split into 4x interest-free
payments of R84.75 Learn more

Extruded Aluminium Enclosure

  • Designed to house P.C. boards or for equipment interfacing.
  • Integrated slotted flanges allow for easy wall mounting.
  • Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.
  • P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
Size L x W x H 3.15 in x 2.13 in x 0.91 in
(80 mm x 54 mm x 23 mm)
Shipping Weight 0.18 lbs (0.08 kg)
UNSPSC 39121301
UPC 623980563022
REACH Compliant Yes
RoHS Compliant Yes
Packaging Type shrink wrap
Material Aluminum (Extruded)
Color Black
IP Rating IP54
Product Category Enclosures
Type PC Board Enclosure
Max. P.C. Board Length (mm) 79
Max. P.C. Board Width (mm) 50
Device Enclosure
Type Extruded | Aluminium
