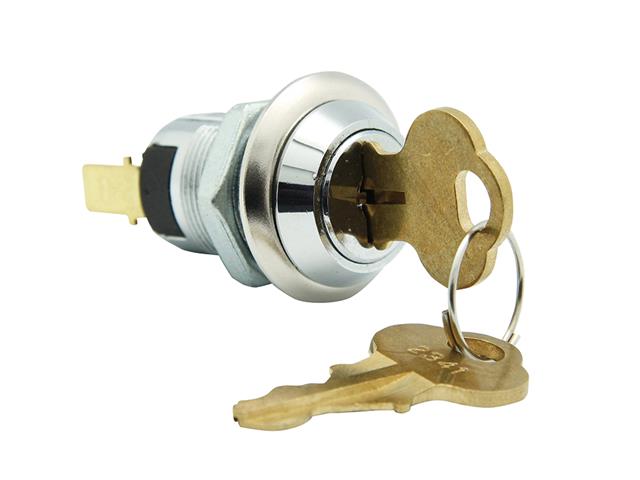

Key Switch Standard Round 19mm SPST Key Pull 1 OFF (ON) 2 Spade Terminals 2A 250VAC
Key Switch Standard Round
Feature(s)
- Zinc alloy die cast housing and cylinder
- Bright chrome plated standard
- 11 disc tumbler mechanism
- Double-bitted brass keys
- S203A 2 position (off-on) 2 spade terminals
- S203AM 2 position (off-on) 2 spade terminals, spring
- loaded for momentary contact
- Hex nut mounted
Specifications
- Contact Rating: 4A 125VAC, 2A 250VAC
- Contact Resistance: 50Milli-Ohms Max
- Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
- Dielectric Strength: 1500 VAC -1 Minute
Additional Information
Device |
Key Switch |
Type |
Sandard | Round |
