SKU: IGS203A-1 (KEY#2341)

BRAND: Communica

Sold Out
R 186.30_{(inc VAT)}
R 162.00_{(ex VAT)}

Collections: Electromechanical

Category: Key Switches

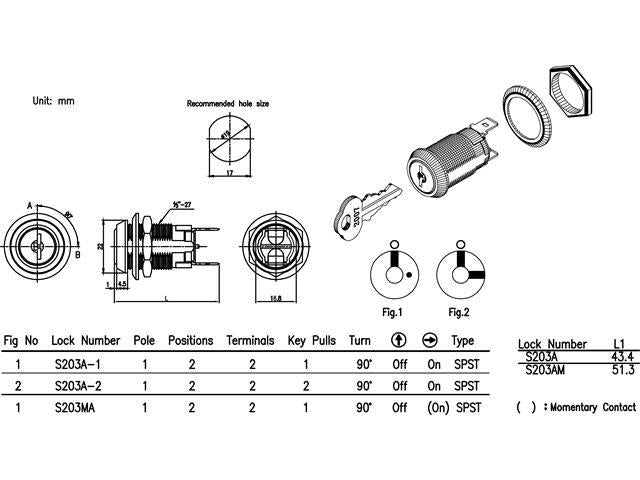

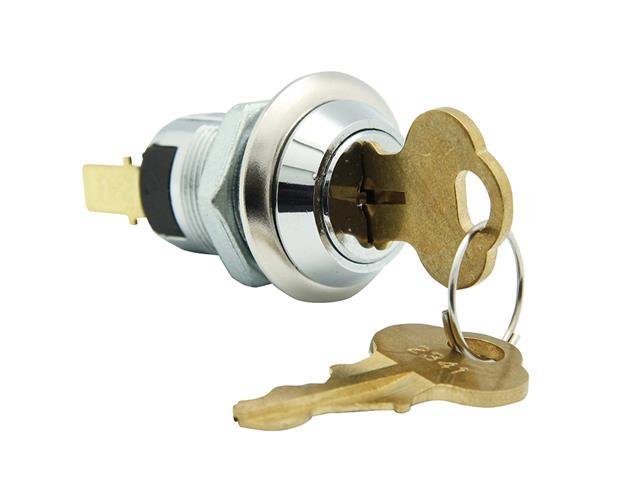

Key Switch STD Round 19mm SPST Key Pull 1 Off On Spade Terminals 2A 250VAC

STD Round 19mm SPST Key Switch

Feature(s)

Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
11 disc tumbler mechanism.
Double-bitted brass keys.
Key may be withdrawn in one or both positions.
2 position (off-on), S203A is spade terminals
Hex nut mounted.

Specifications

Contact Rating: 2A 250VAC
Contact Resistance: 50Milli-Ohms Max
Insulation Resistance: 10⁹ Ohm Min
Dielectric Strength: 1000 VAC -1 Minute
Size : 19mm

Additional Information

Device	Key Switch
Type	STD \| Round \| 19mm \| SPST
