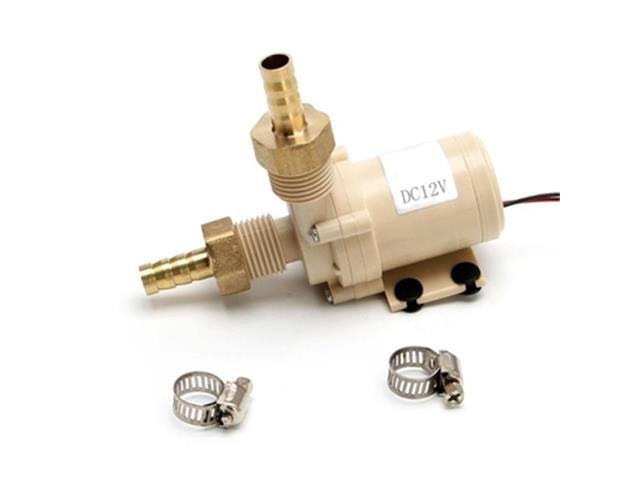

DC 12V Solar Hot Water Circulation Brushless Motor Pump. 10Bar-- Max Water Head: 3 Meter--8L/Min(2.1GPM)-- 0.7A(MAX)-- Max Circulating Water Temperature : 100°C (NOT TO BE INSERTED IN WATER)-- Inlet : 1/2" Male Thread. Fit Both 1/2" NPT and BSP Female THR
It's perfect for the home solar water heating systems or other circulation pump application.
Brushless Motor,Super long working life,low consumption and low noise
Specifications
Power source: DC 12V
Rated current: 0.7A
Low noise: 30db at 1 metre
Service life: 30000 hours up
Inlet/Outlet: 1/2"" male thead. Fit both 1/2"" NPT and BSP female thead. We've tested. w/ two brass coupler
Circulation pump is non-self-priming pump (0 Suction Height)
Max Flow Rate: 8L/Min(2.1GPM)
Max Water Head: 3 metre(9.8ft)
Max system pressure: 10Bar(145PSI). This doesn't mean the pump produces 145PSI. It means the pump can be connected to the system less than 145PSI pressure.
Max circulating water temperature: 100°C/212°F. Can't be immersed in hot water exceeding 50°C/122°F
