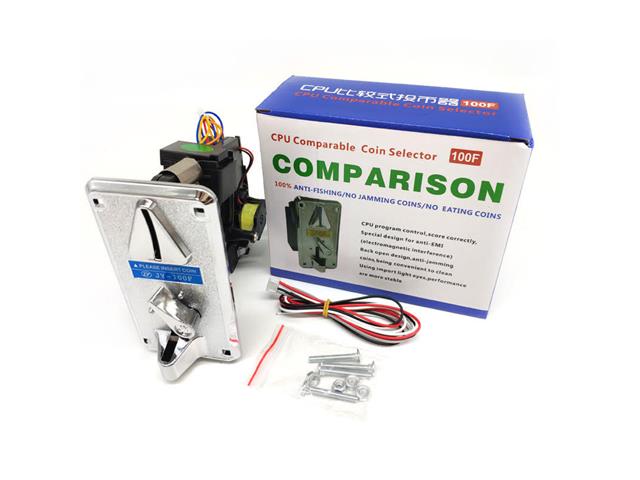

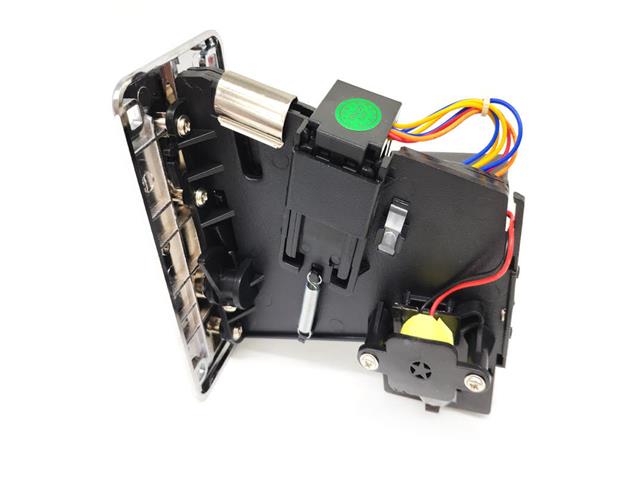

CPU Electronic coin acceptor, Drop Inserting Type.
Capable for accepting all worldwide Coins and Tokens.
Select coin by Diameter, Thickness and Metal Content.
CPU anti-string programs presenting against fraud.
Adjustable VR tunning for sensitivity of coin acceptance.
Allow to connect to Counter (Meter).
Voltage: DC+12V
Coin Diameter: 22mm~28mm
Coin thickness: 1.7mm~2.2mm

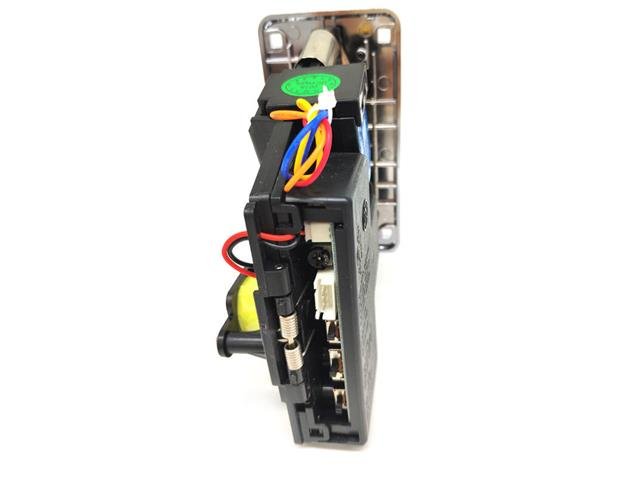

USER GUIDE:

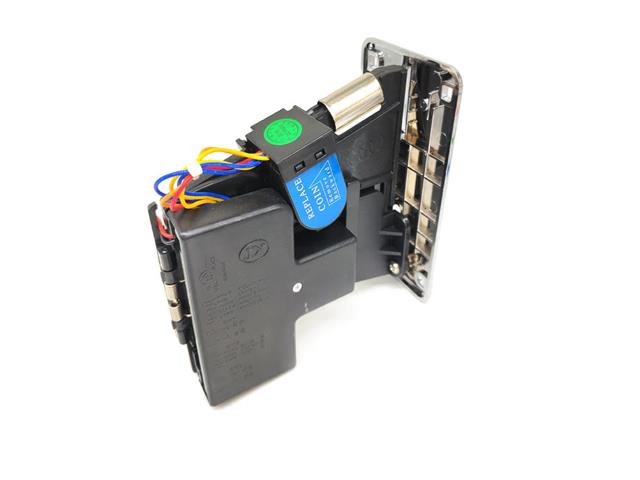

Replace yellow plastic token to the correct coin as wish to accept in sampling clamp.
Adjust entry slot opening to your coin size by loosening screw on the back of metal panel for blocking bigger invalid coin from inserting
Turn the screw on front lid in clockwise direction for ditching “thinner coin” through the slot of lid if necessary
Switch to Normal Open (N.O.) or Normal close (N.C) for signal output of coin validation upon Host requested.
3 Triggering TIMER SWITCH of Pulse Duration, ·
Long duration of Pulse: 100ms
Common duration of Pulse: 50ms
Short duration of Pulse :30ms
VR tuning for tolerance of coin acceptance, turn clockwise for slack and anti-clockwise for precise acceptance.
Shift sensitivity switch of coin acceptance downward to “special” to extend the range of discriminated ratio for twin metal coins or the coins in big tolerance.
