99-3363-00-04

SKU: 99-3363-00-04

BRAND: Binder

In Stock
R 379.50_{(inc VAT)}
R 330.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

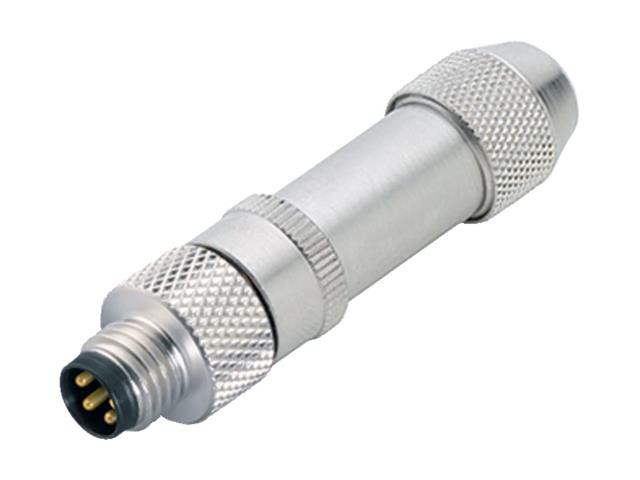

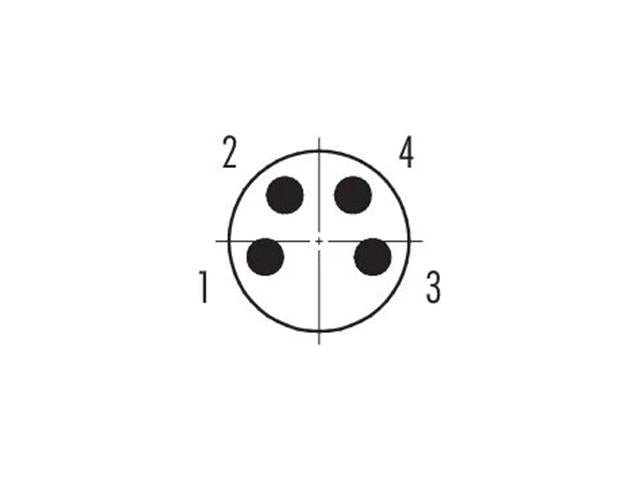

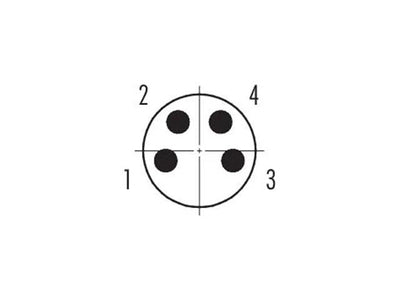

Circular Connector M8 Cable Male Straight, 4 Pole Screw Lock Sold Termination 5,0mm Cable Entry Shield 4A 30V IP67

M8 Cable Male Straight Circular Connector

Specifications

Connector design : Male cable connector
Type standard : DIN EN 61076-2-104
Version : Connector pin straight
Connector locking system : screw
Termination : solder
Degree of protection : IP67
Cross-sectional area : 0.25 mm² / AWG 24
Cable outlet : 3.5-5.0 mm
Temperature range from/to : -40 °C / 85 °C
Mechanical operation : > 100 Mating cycles
Weight (g) : 17.82

Electrical parameters

Rated voltage : 30 V
Rated impulse voltage : 1500 V
Rated current : 4.0 A
Pollution degree : 3
Overvoltage category : III
Insulating material group : III
EMC compliance : shieldable
Shield connection : Shielding ring

Downloads

Datasheet - 99-3363-00-04

Additional Information

Device	Connector
Type	M8 Cable \| Male \| Straight \| Circular
