General

• Shell : Metal material
• Operating temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Storage temperature : -40 °C to 85 °C (-40 °F to 185 °F)
• Power supply : 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
• Storage humidity : 5% to 95% (no condensation)
• Net weight : 1.8 kg (4.0 lb)
• Gross weight : 2.58 kg (5.69 lb)
• Dimension (L × H × D) : 266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
• Operating humidity : 5% to 95% (no condensation)
• Power consumption in idle : 0 W

Network parameters

• Port number : 16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
• Port type : RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding mode : Store-and-forward switching
• Working mode : Standard mode (default); Extend mode
• MAC address table : 4 K
• Switching capacity : 7.2 Gbps
• Packet forwarding rate : 5.356 Mpps
• Internal cache : 2.75 Mbits
• High priority ports : Ports 1 to 8
• Ports for long-distance transmission : Ports 9 to 16

PoE power supply

• PoE standard : IEEE 802.3af, IEEE 802.3at
• PoE power pin
  • Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
  • Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
• PoE port : Ports 1 to 16
• Max. port power : 30 W
• PoE power budget : 130 W
• Max. power consumption : 150 W

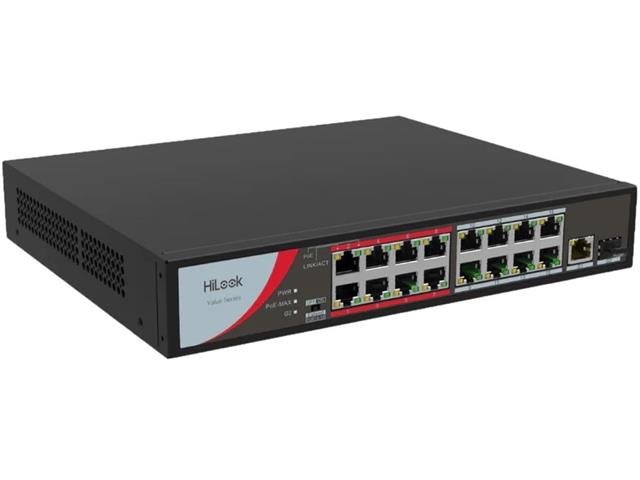

1. Datasheet - HLK NS-0318P-130
