AIRLIVE IOT START KIT SK-104-DE

SKU: AIRLIVE IOT START KIT SK-104-DE

BRAND: Airlive

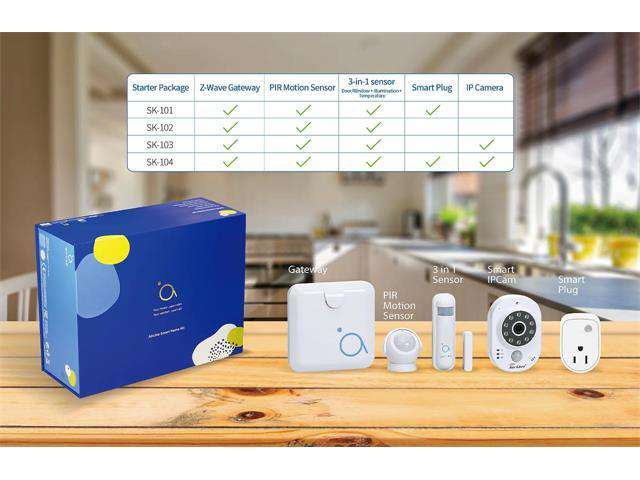

Airlive Smart Life IoT, Z-Wave Plus, Home Automation Kit, Includes, Gateway Hub, PIR Motion Sensor, 3 in 1 Sensor, and Smart Plug, and Smart IP Camera.

Overview

Create your own system

  • Gateway and sensors are pre-paired for zero setup
  • Secure your home 24/7
  • Lighting control available
  • Home Automation available
  • Support Google Home|Assistant and Amazon Alexa
  • Built-in siren to protect your home as security system
  • Business level security based on 128-bit AES encryption
  • Multiple brand support by Z-wave

Using the AirLive SmartLife Plus app is the best way to control your AirLive Z-Wave Smart Home system. Setup your Z-Wave devices which are connected to the SG-101 Gateway and receive notifications. Make Scenes, Macro's and even setup schedules all is possible with the easy to use APP from Airlive.

Secure your home 24/7

With the built-in siren the SG-101 can warn you when a sensor is triggered. This can be a Alarm from a PIR, Door/Window sensor or a Macro you setup separately to inform you of a certain situation. The camera will provide continues live-view and also record to your mobile / storage / camera SD card.

Convenient Lighting Control

As the main controller of your Smart Home system the SG-101 in combination with the In-Wall switch and dimmer can control your lights. Turn your lights on before you arrive home or turn them off when you are in the office. All is possible using the AirLive SmartLife Plus App and the SG-101. Dim your lights when watching TV with the push of a button or via Voice Control.



Operate your Home using your Voice

The AirLive SG-101 Gateway supports Voice Control with Amazon Alexa and Google Home / Assistant. Using the AirLive SmartLife Plus App you can make scenes which can be controlled via your Voice. For example turn your lights on by saying "light on" or say "close curtain" and automatically your curtain will close. Voice control will make your life easier.



Features

  • Z-wave Plus technology support mesh networking
  • Up to 40m coverage at open space with lower power consumption
  • Expandable and compatible with other smart home devices
  • Can be applied to different automatic home applications
  • Control effortlessly via AirLive SmartLife Plus APP
  • Easy to install: All sensors are pre-paired with Gateway
  • Control anywhere: Support P2P technology

Specification

    • Model : SG-101 Smart Home Gateway with Siren Z-Wave Plus
    • Maximum transmission distance : 40 M (Indoor)
    • Z-Wave Standard : Z-wave plus
    • Z-Wave Frequency : CE:868.40 MHz, 869.85 MHz
    • Maximum connected Z-Wave devices : 232
    • Siren : Built-in 6 tune Siren
    • WiFi : IEEE 802.11 b/g/n
    • WiFi Output Power : 11 dBi
    • Network (LAN) : 10/100 Base-T RJ45
    • Power : DC 5 V 1 A adaptor
    • Dimensions : 110(L) x 110(W) x 19(H) mm

Specification

    • Model : SI-101 3-in-1 sensor Door/Window + Illumination + Temperature Z-Wave Plus
    • Maximum transmission distance : 40 M (Indoor)
    • Z-Wave Standard : Z-wave plus
    • Door Sensor Magnetic Gap : 3 mm
    • Temperature Sensor Detected Range : -10 ~ 70° C
    • Illumination Range : 0 ~ 500 Lx
    • Power : Built-in Battery (CR123A 1700 mA)
    • Detector Dimension : 96(L) x 28(W) x 23(H) mm
    • Magnet Dimension : 50(L) x 12(W) x 10(H) mm

Specification

    • Model : SI-102 Motion Sensor with cover Z-Wave Plus
    • Maximum transmission distance : 40 M(Indoor)
    • Motion Detection Range : 8 Meter / 140 degree
    • Z-Wave Standard : Z-wave plus
    • Power : Built-in Battery (CR123A 1700 mA)
    • Dimensions : 50(L) x 45.5(W) x 49.3(H) mm

Specification

    • Model : SP-101 Smart Plug Z-Wave Plus
    • Maximum transmission distance : 40 M(Indoor)
    • Z-Wave Standard : Z-wave plus
    • Power input Range : 100 ~ 240 VAC
    • Overload Current : 14.5 A
    • Maximum Output Current : 13 A (Resistive Load)
      • Maximum Output Power :
      • 110 Vac: 1500 W
      • 220 Vac: 3000 W
    • Maximum Measurement Error : 3 W
    • Dimensions (Body) : 51(L) x 78(W) x 38(H) mm

Specification

  • Model : SmartCube 300W IP-Camera
  • Image Sensor : 1/3" CMOS sensor
  • Max. Resolution : 3MP (2048x1536)
  • Viewing Angle : 80°(D) 72 °(H) 47 °(V)
  • Max. IR Distance : 15 M
  • Built-in Hardware : PIR sensor, ICR, Speaker, Microphone
  • WiFi : 802.11n
  • LAN : 10/100
  • SD card Slot : Micro SDXC
  • Power : 5 V / 1 A
