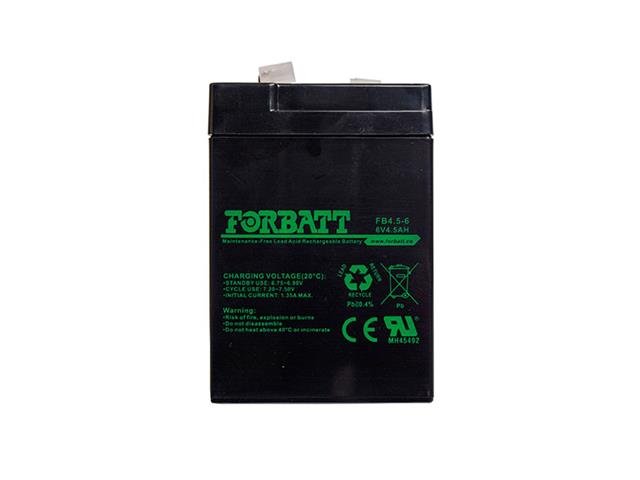

BATT 6V4,5 FBT

SKU: BATT 6V4,5 FBT

BRAND: Forbatt


Rechargeable Battery 6V4,5AH (L=70 W=48 H=101mm) F1 Terminal 4.8mm 0.73kg

Rechargeable Battery 6V4,5AH

Specifications

    • Nominal Voltage : 6V
    • Rated Capacity (20hr Rate) : 4.5Ah
    • Dimensions
      • Length : 70mm
      • Width : 48mm
      • Height : 101mm
      • Total Height : 10mm
      • Weight : 0.73kg

Characteristics

    • Capacity 77°F(25°C)
      • 20hour rate (0.23 A) : 4.50Ah
      • 10hour rate (0.83 A) : 4.10Ah
      • 5hour rate (1.53 A) : 3.85Ah
      • 1hour rate (5.85 A) : 2.93Ah
    • Internal Resistance
      • Full Charged, 77°F(25°C) : 30mΩ
    • Affected By Temperature (10hr Rate)
      • 104°F(40°C) : 102%
      • 77°F(25°C) : 100%
      • 32°F(0°C) : 85%
      • 5°F(-15°C) : 65%
    • Self-Discharge 77°F(25°C)
      • Capacity after 3 month storage : 90%
      • Capacity after 6 month storage : 80%
      • Capacity after 9 month storag : 60%

Charge (Constant Voltage)

  • Initial Charge Current “LESS” than 1.35A
    • Cycle : 7.20–7.50V/77°F(25°C)
    • Stand By : 6.75V–6.90V/77°F(25°C)

Downloads

Additional Information

Device Battery
Type Rechargeable
